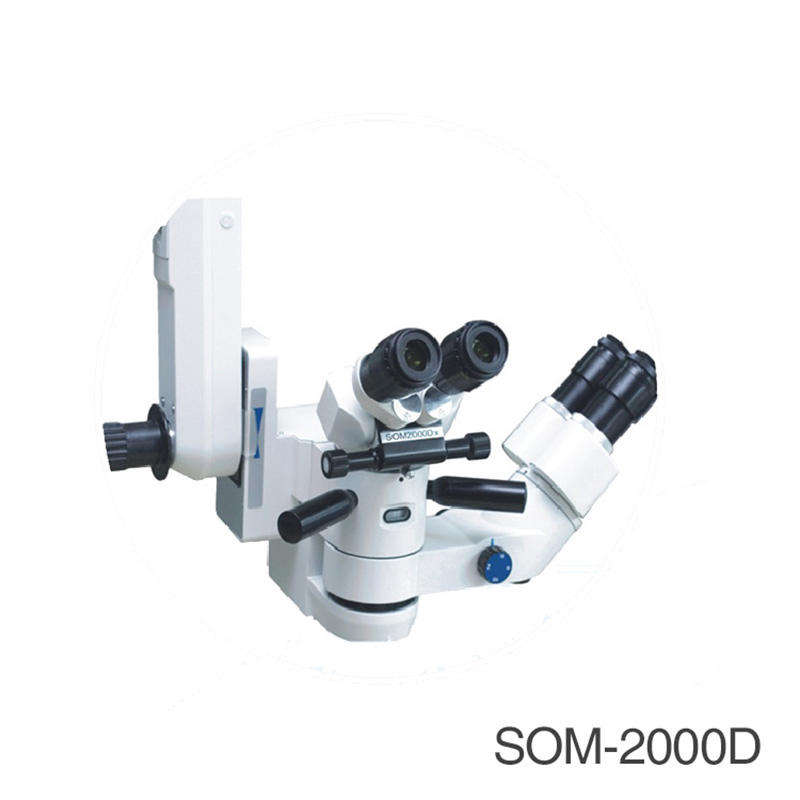

Ophthalmic Operating Microscope With Zoom For Two Men SOM-2000D
1 .
Quantity:
-
+
Add To Cart
Get Price
Chat on WhatsApp:
Product Description
The product is an advanced double binocular operation microscope designed for two men, ZOOM magnification and foot switchCharacteristics:1. Germany imported Schott optics ensures the surgeon bright, balanced, and fine observation.2. Apochromatic technology used in the optical design, ensures coaxial light focus and provides clearer field of view3. Lock device under the microscope arm ensures the safe distance and prevent accidents from happening.4. Independent electrical control box with the function of automatic diagnosis, which is very convenient for installation and repair if necessary.
Specifications
| Eyepiece Magnifications | 12.5×/18B |
| Objective Lens | f=200 |
| Working Distance | 170mm |
| Magnification for Main Microscope | 4.6×~27×motorized and manual controlcontinuous magnification |
| Magnification for Assistant Microscope | 6×,10×,16× |
| Diameter of Field | 4646+46mm~8.58.588.58mm |
| Diopter Adjustment | ±7D |
| Pupil Distance | 50mm~75mm (main microscope is 45mm ~80mm) |
| Maximal Resolution | 119 LP/mm |
| Focusing Range for Assistant Microscope | ≥30mm |
| Illumination Source | 12V/100W,cold reflection halogen lamp for medical use |
| Illumination Type | 6°+0°coaxial illumination of cold light source, 26°oblique illumination |
| Coaxial Illumination | ≥80000lx,1~9level,panel operated |
| Oblique Illumination | ≥60000lx,1~9level, panel operated |
| Reaching Radius of Arm | 1230mm |
| Adjustable Vertical Range | 880mm~1420mm |
| Fine Focusing Speed and Range | ≤2mm/s,≥50mm |
| Speed for X/Y and Range | ≤2mm/s,50mm×50mm |
| Input Voltage | AC220V±22V/50Hz±1Hz,AC110V±11V/60Hz±1Hz |
| Power | 170VA |
| Fuse | AC250V T4.04.0444.0000A ,AC1250V T8.0588.0A |
| Electrical Safety Standard | Executive standard:GB9706.1-2007,Class I |
| Packing Volume | 0.756m 3 ,5cartons |
| Total Weight | 215kg |
