EC3200 3D scanner frame tracer auto lens edger
1 .with groover function optional
2 .Flexible and versatile
3 .User-friendly color LCD panel
4 . Integrated tracing and centering device
5 . The display can be tilted
6 .3D lens inspection system
Quantity:
-
+
Add To Cart
Get Price
Chat on WhatsApp:
Product Description
EC-3200 Auto lens edger
Features:
1. Flexible and versatile
2. User-friendly color LCD panel
3. Integrated tracing and centering device
4. The display can be tilted
5. The shape imager detects the shape of a pattern, demo lens and horizontal axis automatically
6. The pattern could be stored to improve efficiency. Frame memory could save time and storage space.
7. 3D lens inspection system
8. Grooving and safety beveling
9. Processing mode for various kinds of lens materials
| EC-3200 | ||
| Processing system | Beveling, flat edging, grooving, polishing and chamfering | |
| Auto mode and guide mode | ||
| Processing lens | glass, plastic, polycarbonate | |
| Processing pressure | approx. 4.Skg (fixed) | |

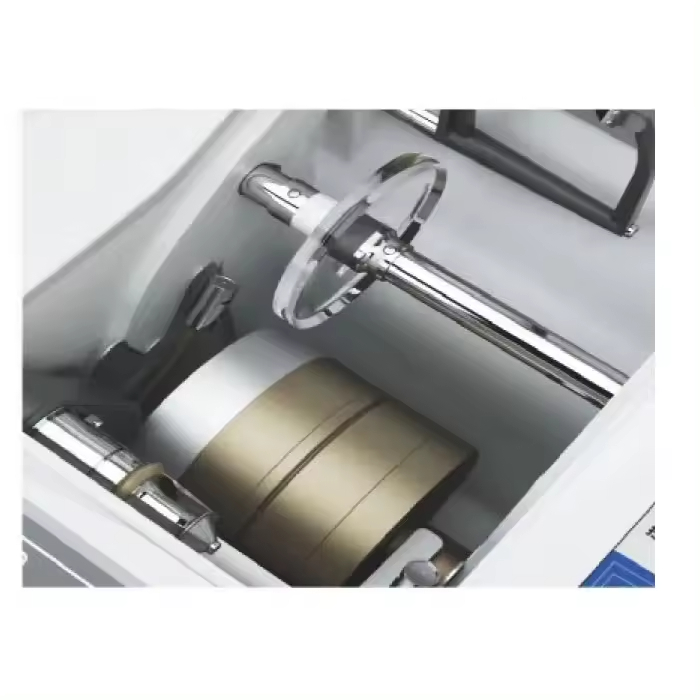

| Wheels | Roughing wheel for glass lens | 100mm in diameter, 17mm in width |
| Roughing wheel for plastic lens | 100mm in diameter, 17mm in width | |
| Finishing wheel | 100mm in diameter, 23mm in width | |
| Polishing wheel (for flat edge) | 100mm in diameter, 12mm in width | |
| water supply system | Pump circulation | AC 100~230V |
| Processing accuracy | Size accuracy | ±0.05mm |
| Axis angle | ±1. | |
| Whole system | Display | 5.6’’LCD/TFT |
| Dirnensrons | 520mm•485mm•330mm | |
| Weight | -45Kg(only main body) | |
| Power supply | 110/220V 50/60HZ | |
| Power consumption | 1.2KVA(max. during processing) | |
| CT-700 | ||
| Whole system | Measurement time | <3S |
| Measurement accuracy | <0.1mm | |
| Display | 8″LCD/TFT(800•600) | |
| Dimensions | 415mm*260mm*236mm | |
| Weight | ~9Kg(only main body) | |
| Power supply | 110/220V 50/60Hz | |
| Power consumption | 25W | |
