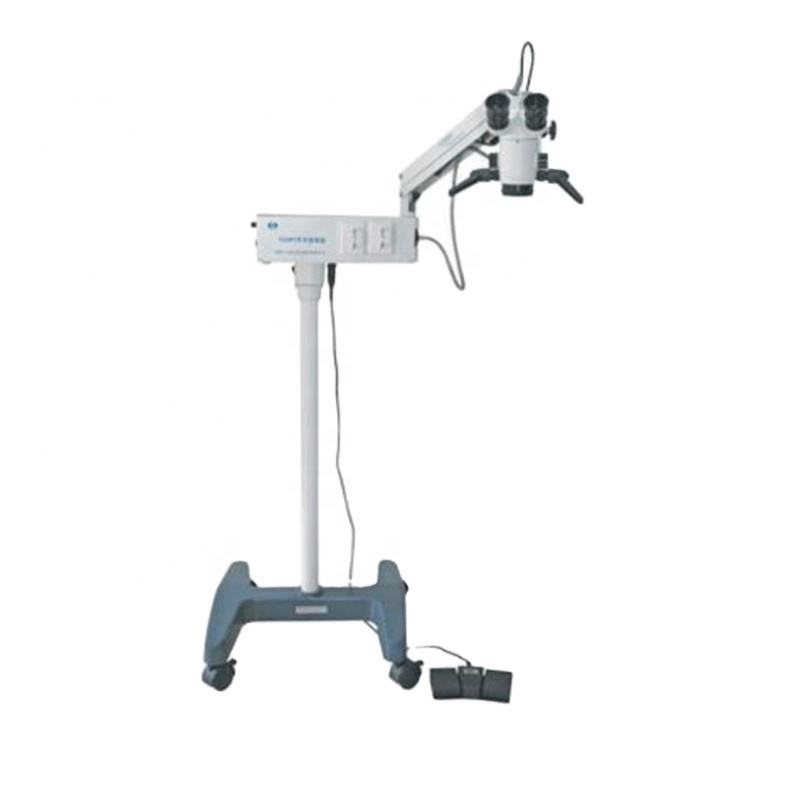

Ophthalmic Instrument Operation Microscope YZ20P5
1 .
Quantity:
-
+
Add To Cart
Get Price
Chat on WhatsApp:
Product Description
1. The product is a simple coaxial illumination operation microscope for one man.
2. It is portable,compact and applied in mobile hospital.
3. Characteristics
4. All the lenses are multi-coated,mildewproof and anti-reflective.
5. Optional objectives: f250/f300/f350f/f400.
6. Column stand can be reflitted to holding stand.It can also be customized according to various operation requirements.
Specifications
| Eyepiece Magnification | 12.5× 16B |
| Objective Lens | f=200 |
| Working Distance | 190mm |
| Magnifications for Main Microscope | 5.3×,8×,12× |
| Diameter of Field | Φ37mm,Φ25mm,Φ16.7mm |
| Diopter Adjustment | ±6D |
| Pupil Distance | 50mm~80mm |
| Maximal Resolution | 100LP/mm |
| Illumination Source | 12V/100W,medical cold reflection halogen lamp |
| Illumination Type | 6°+0°Coaxial cold light source illumination |
| Coaxial Illumination | ≥30000lx |
| Reaching Radius of Arm | 870mm |
| Adjustable Vertical Range | 700mm~1100mm |
| Fine Focusing Range | 30mm |
| Input Voltage | AC220V±22 V / 50Hz, AC110V±11V /60Hz |
| Power | 120VA |
| Fuse | AC250V T1.25A ,AC125V T2.5A |
| Packing Volume | 0.2m³,1carton |
| Total Weight | 41kg |
