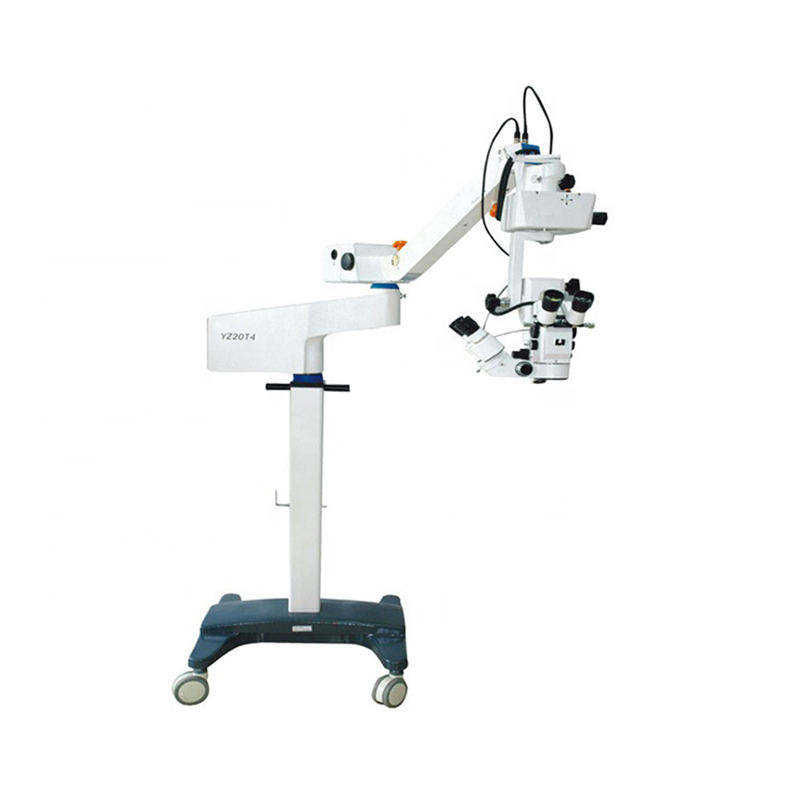

Operation Microscope YZ-20T4

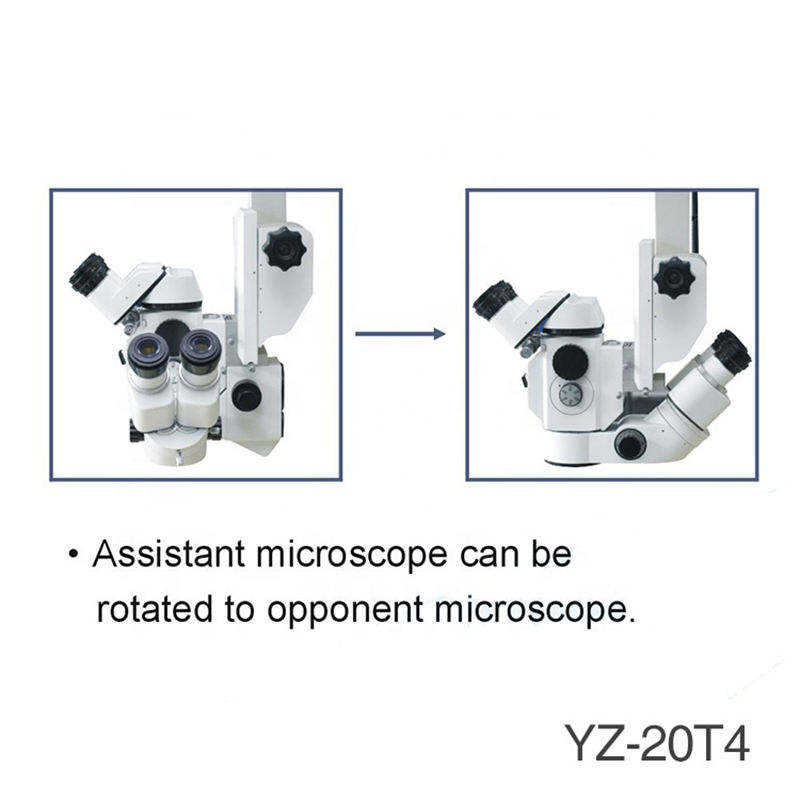

1 .with Pedal Switch and Assistant Microscope
Quantity:
-
+
Add To Cart
Get Price
Chat on WhatsApp:
Product Description
| Model | YZ-20T4 Ophthalmic Operation Microscope |
| Eye piece Magnification | 12.5x/18B |

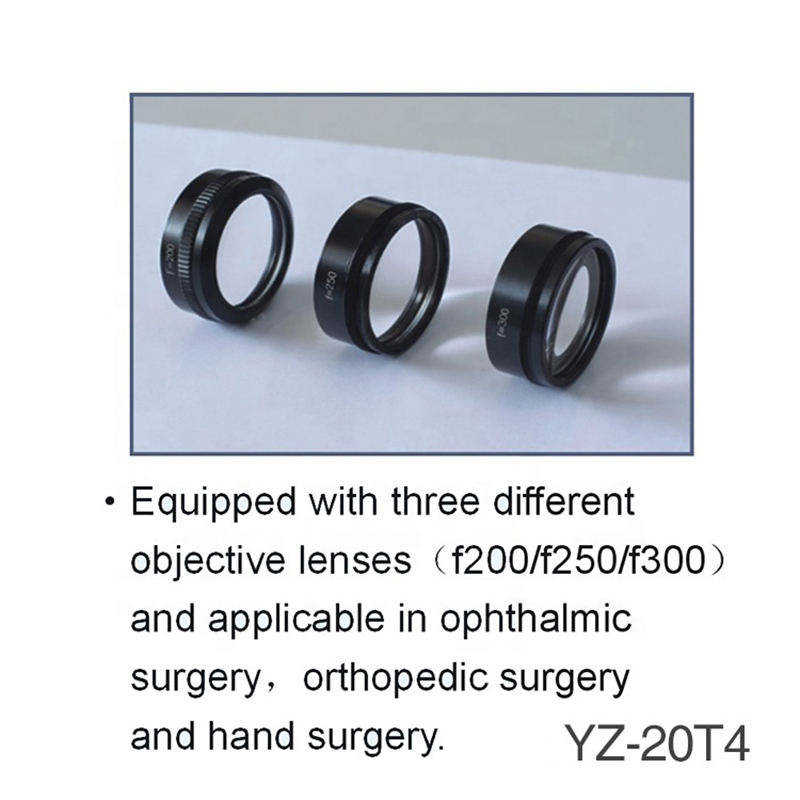

| Working Distance | f200: 190mm; f250: 240mm; f300:290mm |
| Magnification for Main Microscope | f200: 4x, 6x, 10x,16x, 25x; f250: 3.2x, 5x, 8x, 12.8x, 20x; f300: 2.7x, 4.2x, 6.7x,11x, 17x |
| Magnification for Assistant Microscope | f200: 6x, 10x,16x; f250: 5x, 8x, 12.8x; f300: 4.2x, 6.7x,11x |
| Adjustable Diopter | ±7D |
| Adjustable Range of Pupil Distance | 50mm ~ 75mm |
| Focus for Assistant Microscope | ≥ 30mm |
| Maximal Resolution | 112LP/m |
| Illumination Source | 12V/100W, Medical cold-reflection Halogen Lamp |

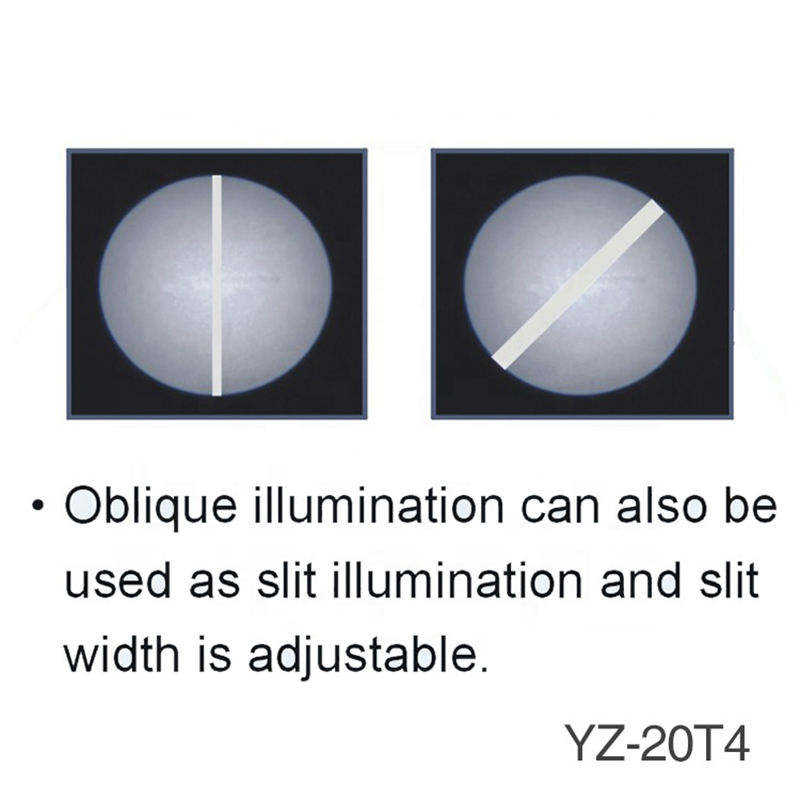

| Illumination Type | 6°+0 °Coaxial illumination and, 25° Oblique Illumination (it can be used as slit illumination) Slit Width is adjustable and theangle is 360°rotation. |
| Coaxial Illumination | ≥ 50000lx |
| Oblique Illumination | ≥ 45000 lx |
| Reaching Radius of Arm | 1040mm |
| Adjustable Vertical Range | 850mm ~ 1350mm |
| Fine Focus Speed and Range | ≤ 2mm/s, 50mm |
| Speed for X/Y and Range | ≤ 2mm/s, 50mmx50mm |
| Input Voltage | AC 220V ± 10% /50HZ ±1HZ, AC 110V±10%/60HZ ±1Hz |
| Power | 330VA |
| Fuse | AC 250V T4.0A(51S-040H), AC 110V T 8.0 A (51S-080L) |
| Electrical Safety Standard | Executive to GB 9706.1-2007, Class I |
| Packing Volume | 0.727cbm, 5 cartons |
| Total Gross Weight | 210kg |
