Operation Microscope with binocular visual fusions YZ-20T9
1 .
Quantity:
-
+
Add To Cart
Get Price
Chat on WhatsApp:
Product Description

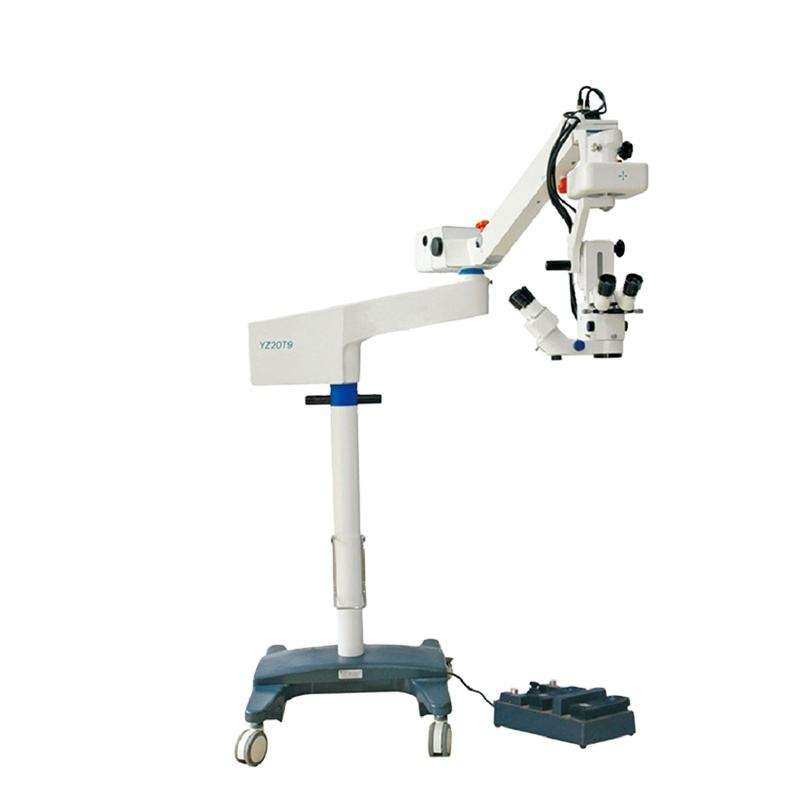

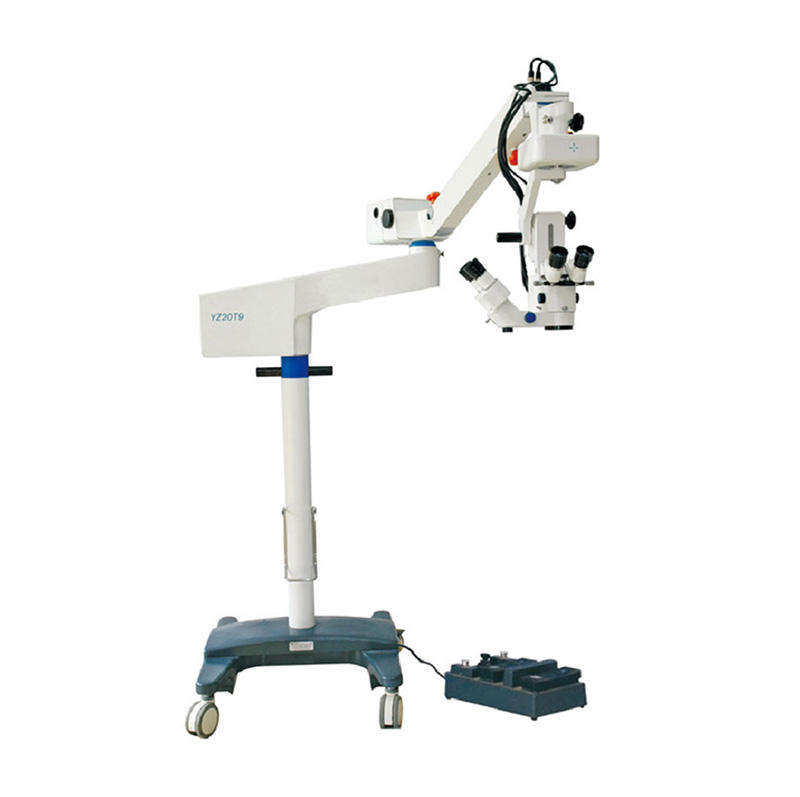

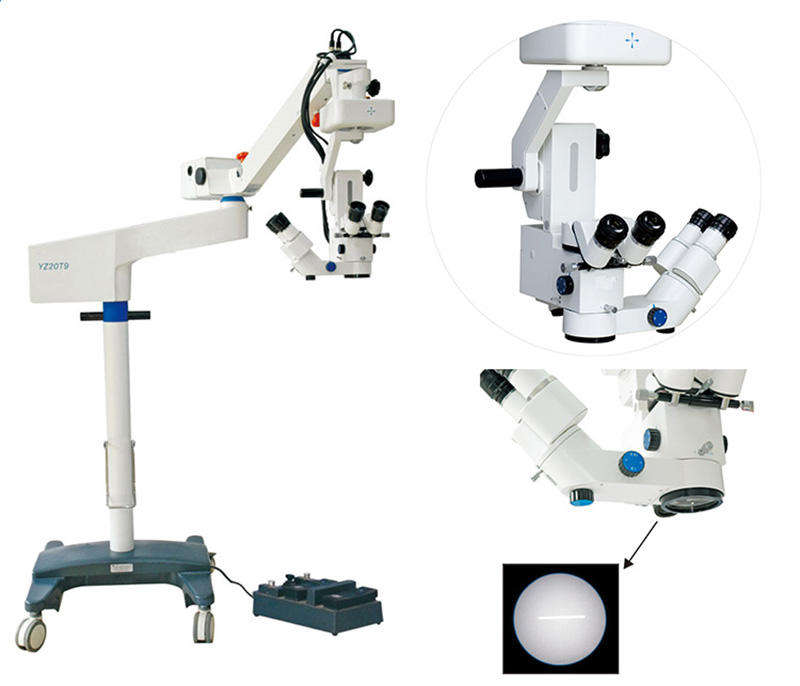

YZ-20T9 China Ophthalmic Operation Microscope with binocular visual fusions
Features:
Advanced apochromatic technology and unique optical balanced technology effectively improves the binocular visual fusions,
strengthens in third dimension and reduces surgeon"s tiredness during operations.

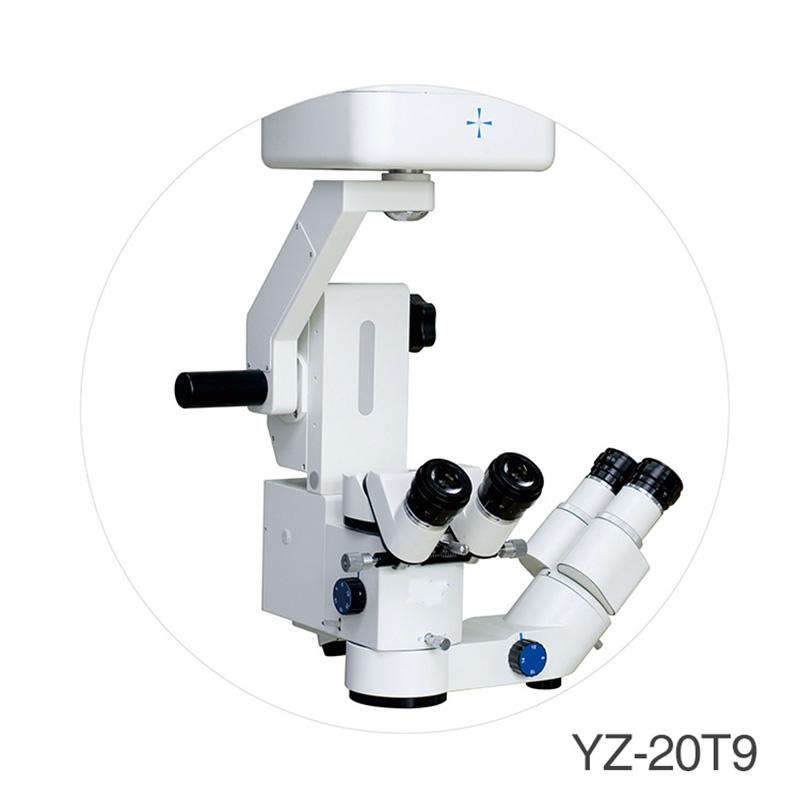

Fine focusing knob is under the bottom of assistant binocular.
The observation of the assistant"s microscope can be finely focused independently of the main microscope to avoid different
observation from surgeons.

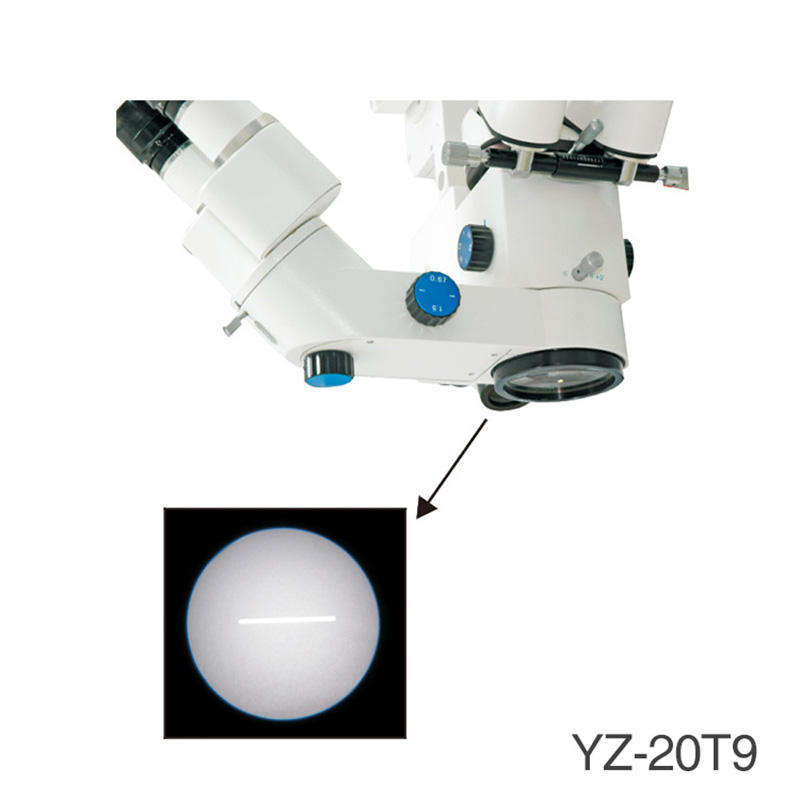

20°oblique illumination can also be used as slit illumination. Slit width is continuously adjustable for ophthalmic use.
| Technical Specifications | ||
| Eyepiece Magnification | 12.5x/18B | |
| Objective Focus | f=200mm | |
| Working Distance | 190mm | |
| Magnification for Main Microscope | 4x, 6x, 10x,16x, 25x | |
| Magnification for Assistant Microscope | 6x, 10x, 16x | |
| Diameter of Field | 58mm, 38mm, 23mm, 14mm, 9mm, | |
| Adjustable Diopter | ±5D | |
| Adjustable Range of Pupil Distance | 50mm ~ 75mm | |
| Maximal Resolution | 119LP/m | |
| Focus for Assistant Microscope | ≥ 30mm | |
| Illumination Source | 12V/100W, Medical cold-reflection Halogen Lamp | |
| Coaxial Illumination | ≥ 50000lx | |
| Illumination Type | 6°+0 °Coaxial illumination and 20° Oblique Illumination (it can be used as slit illumination) Slit Width is adjustable | |
| Oblique Illumination | ≥ 45000 lx | |
| Reaching Radius of Arm | 1240mm | |
| Adjustable Vertical Range | 850mm ~ 1350mm | |
| Fine Focus Speed and Range | ≤ 2mm/s, 50mm | |
| Speed for X/Y and Range | ≤ 2mm/s, 50mm x 50mm | |
| Input Voltage | AC 220V ± 22V /50HZ ±1HZ, AC 110V ±11V/60HZ±1Hz | |
| Power | 330VA | |
| Fuse | AC 250V T4.0A(51S-040H), AC 110V T 8.0 A (51S-080L) | |
| Electrical Safety Standard | Executive to GB 9706.1-2007, Class I | |
| Packing Volume | 0.786cbm, 5 cartons | |
